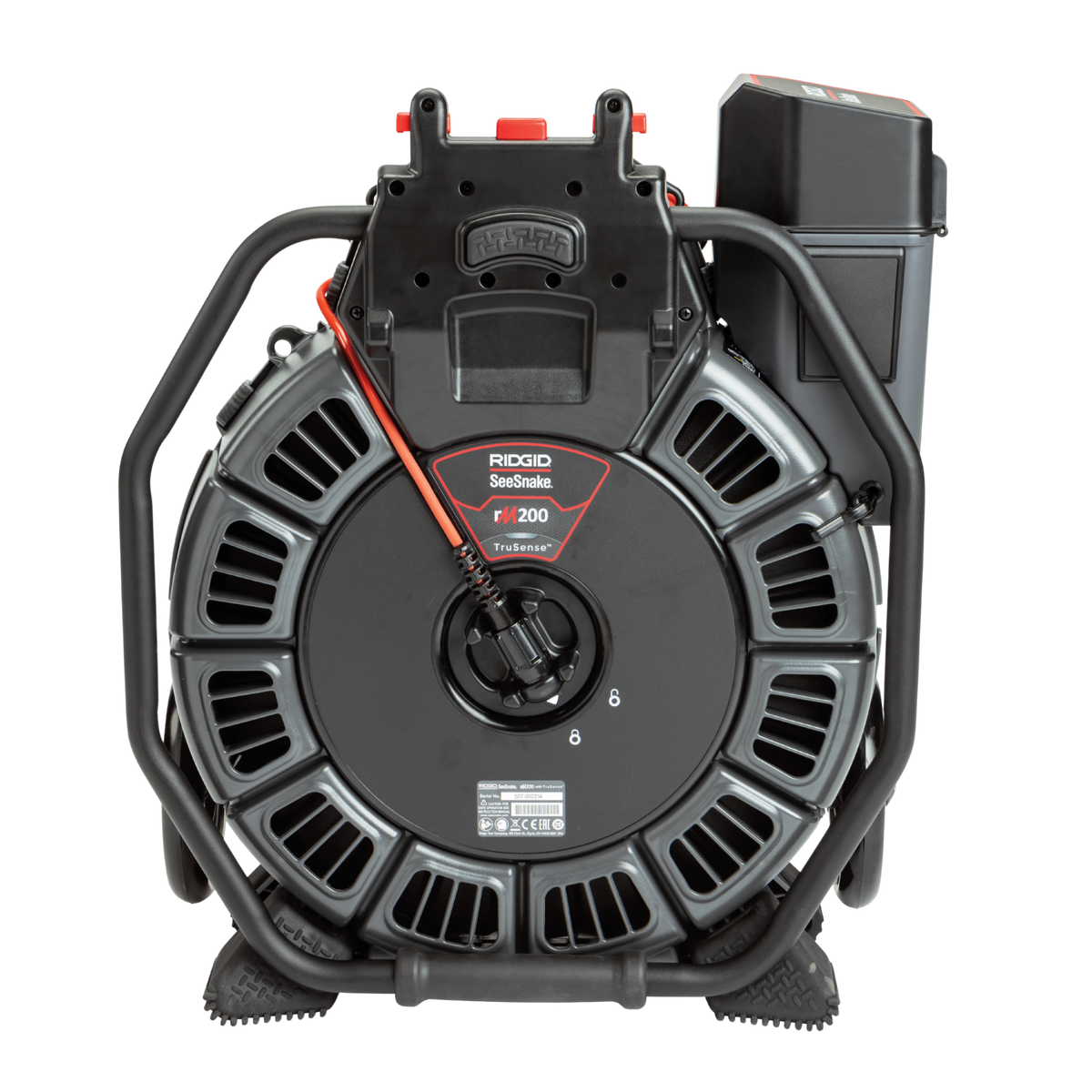

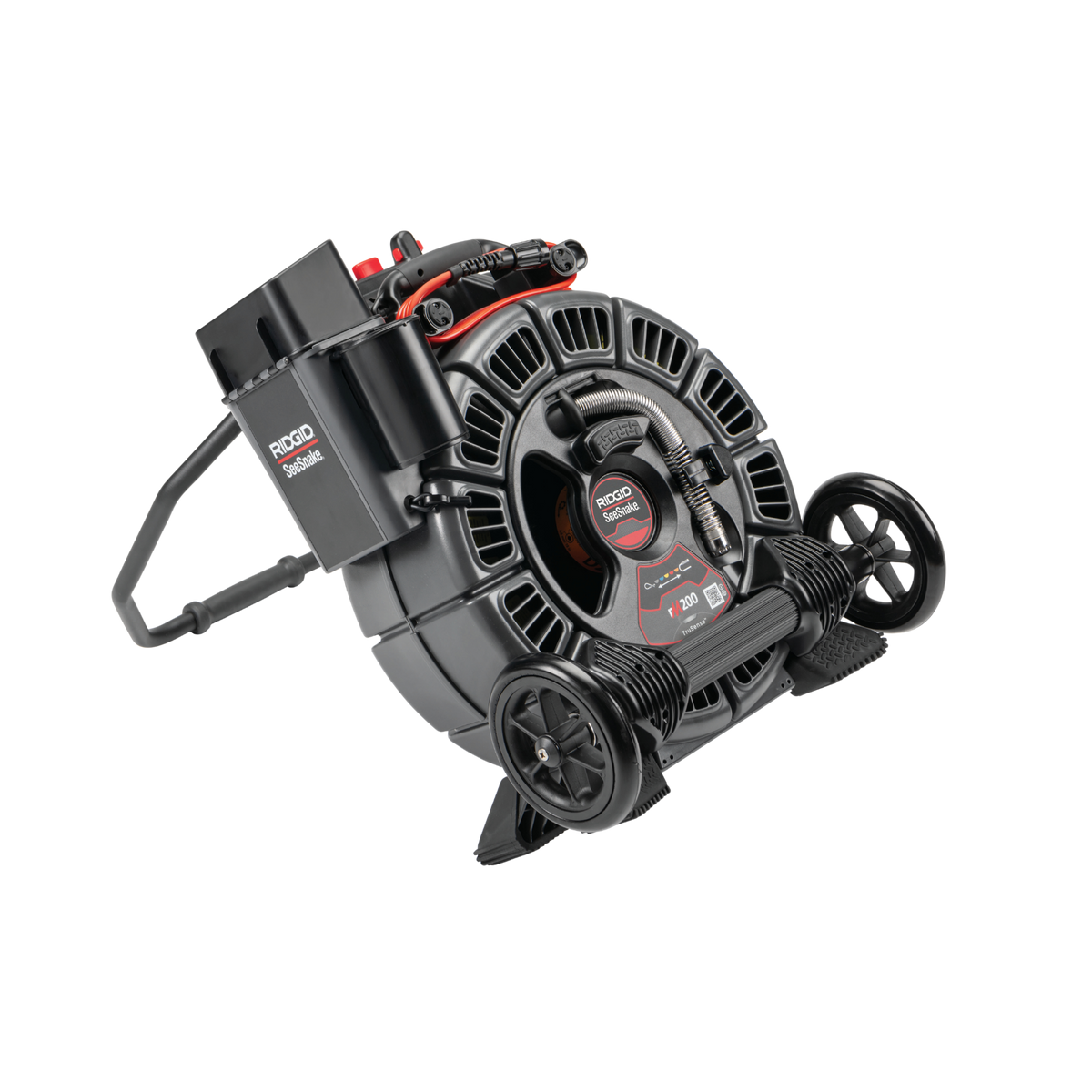

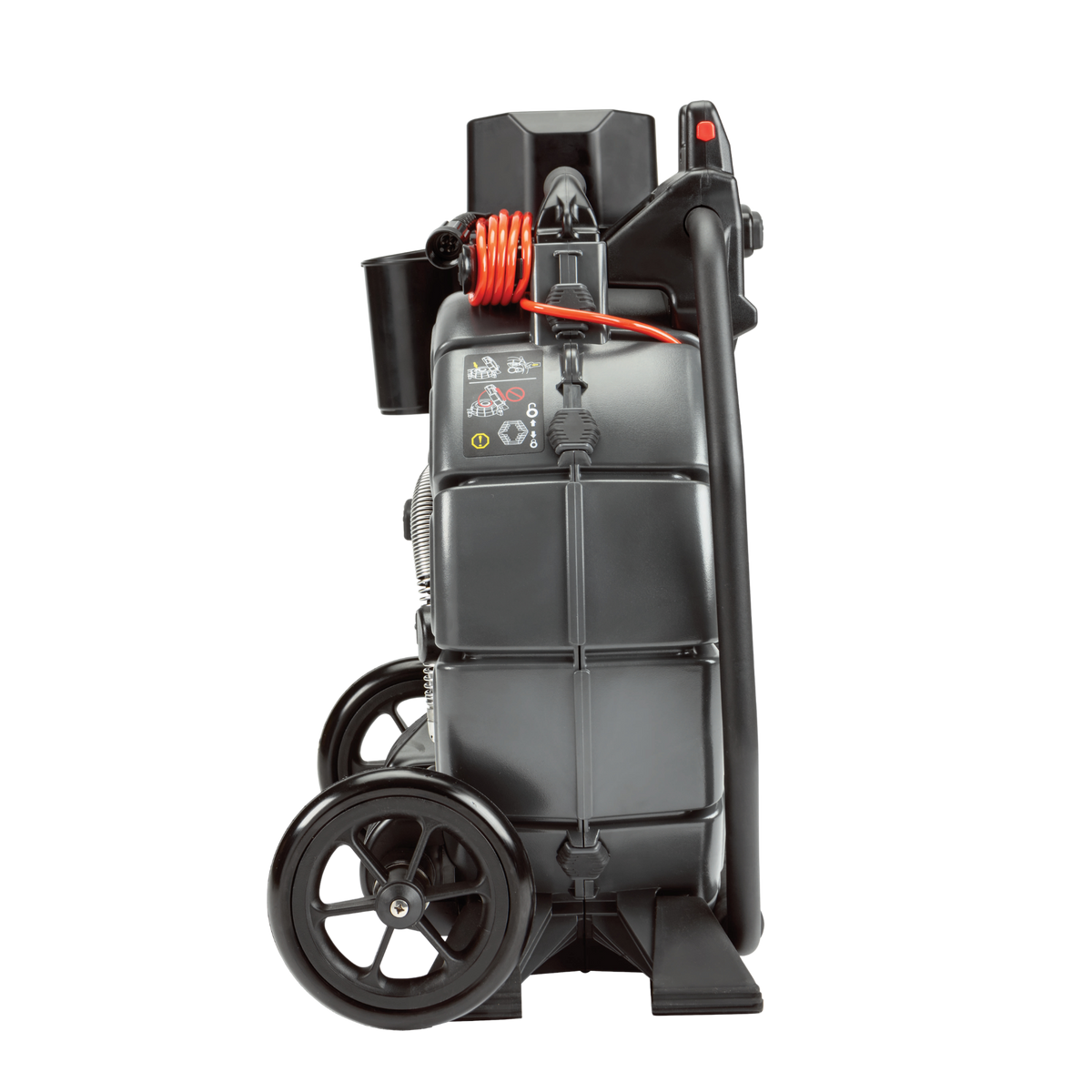

RIDGID 63658 SeeSnake rM200A Reel with Self-Leveling Camera Powered with TruSense

SKU: 63658
$10,539.98 $11,977.25
Shipping calculated at checkout.

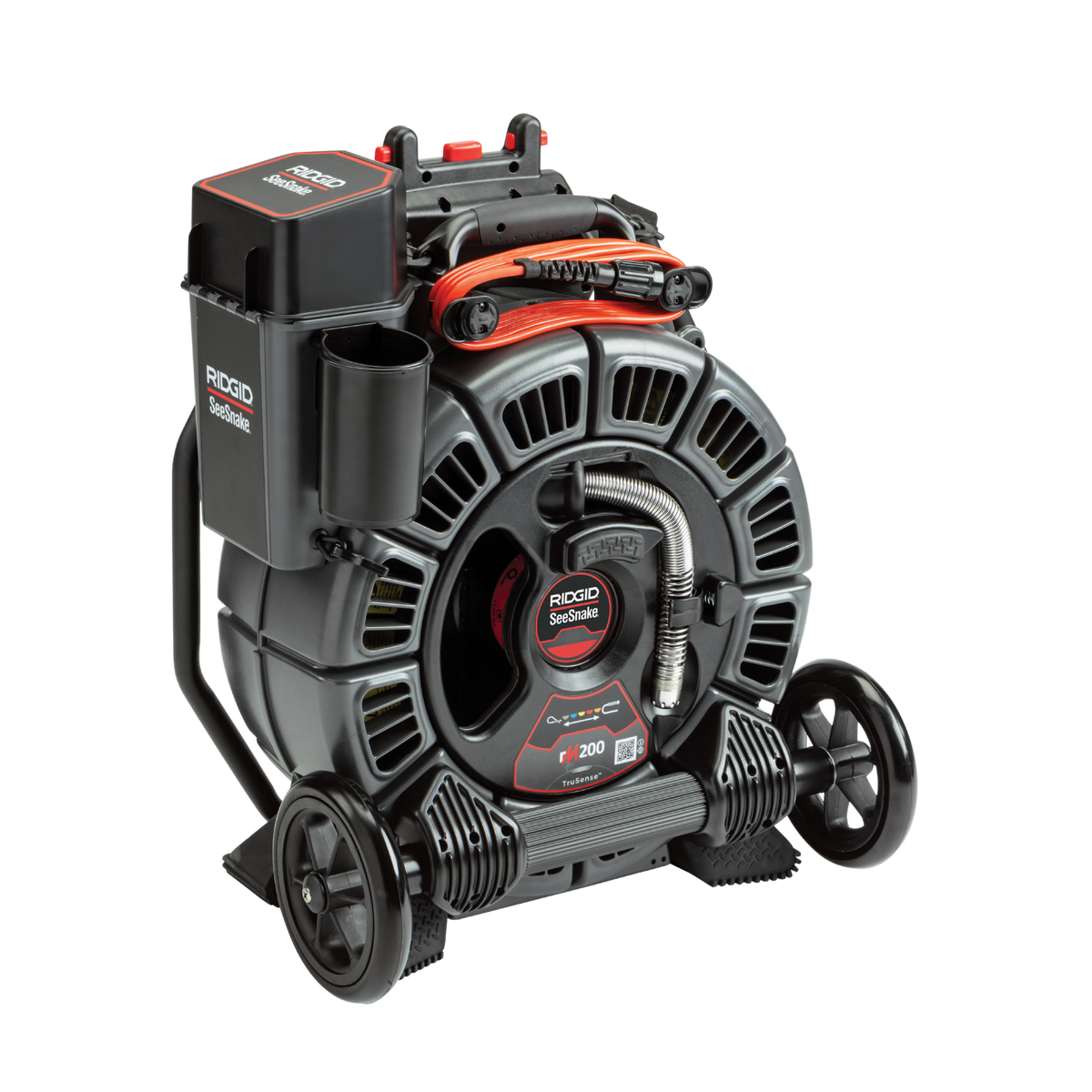

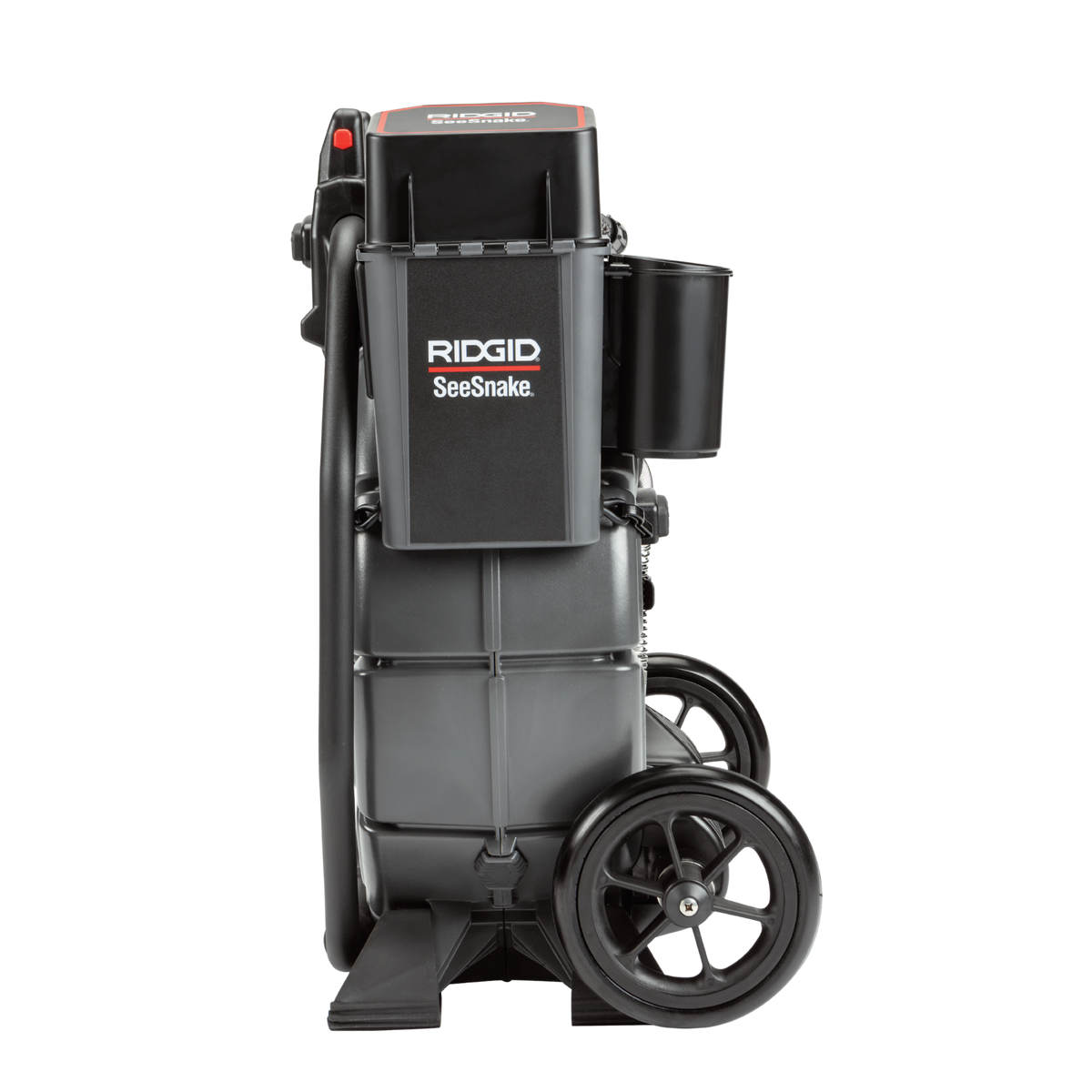

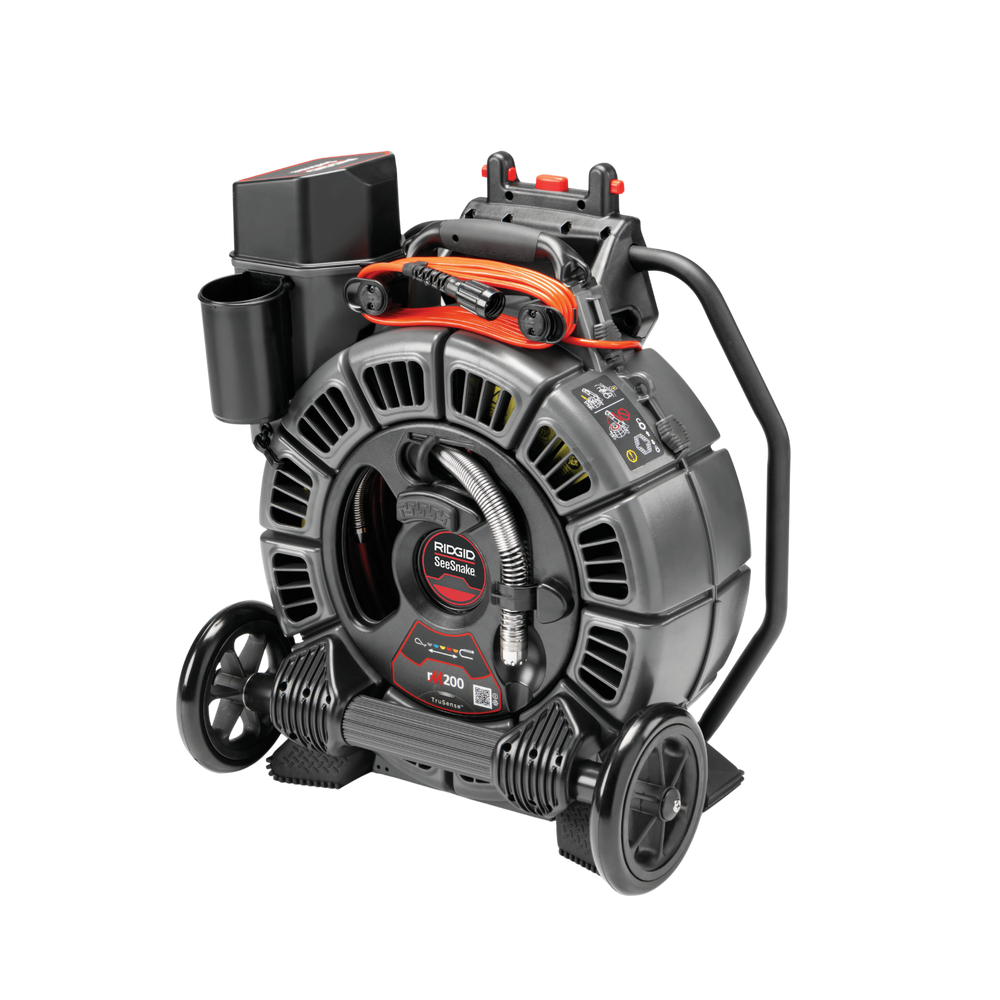

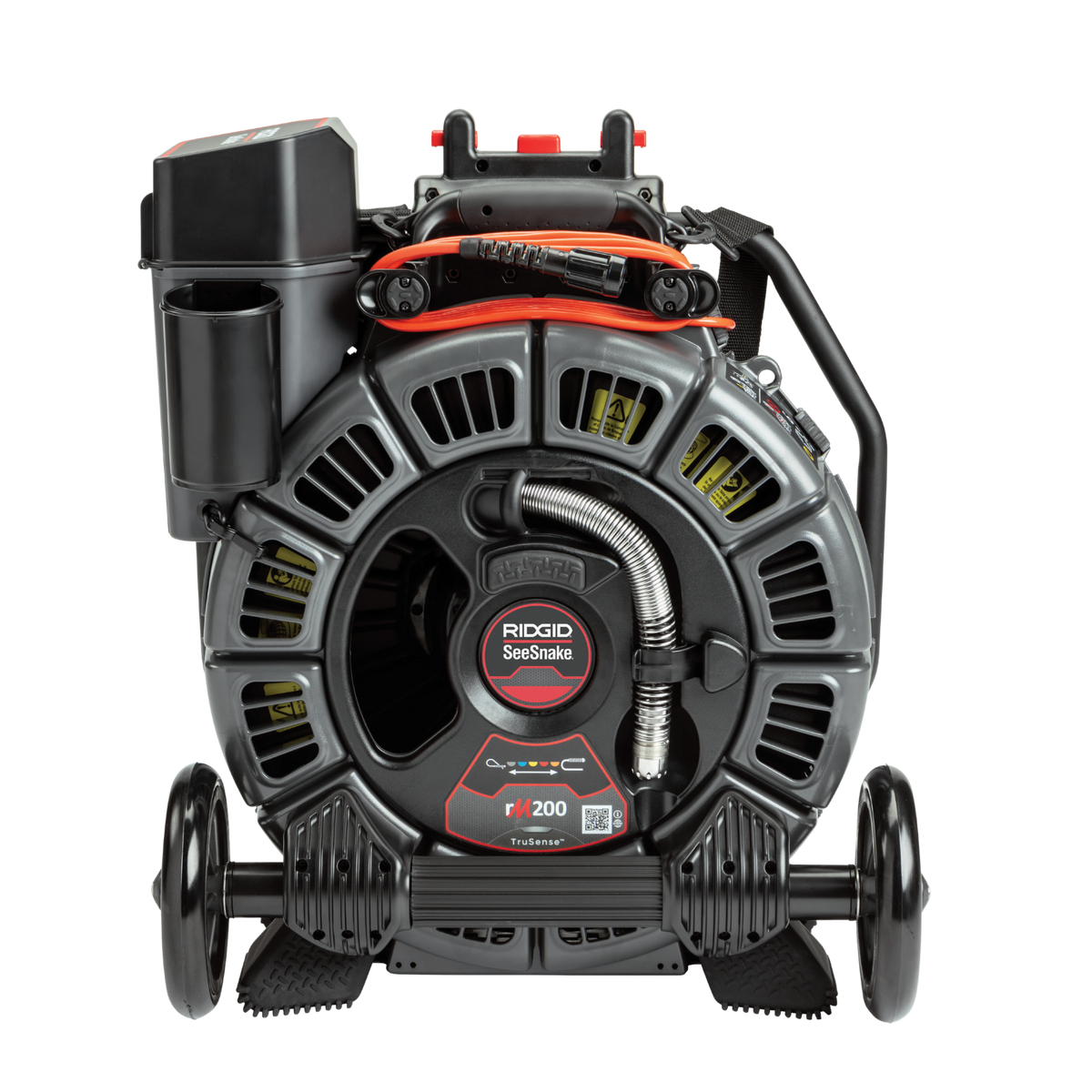

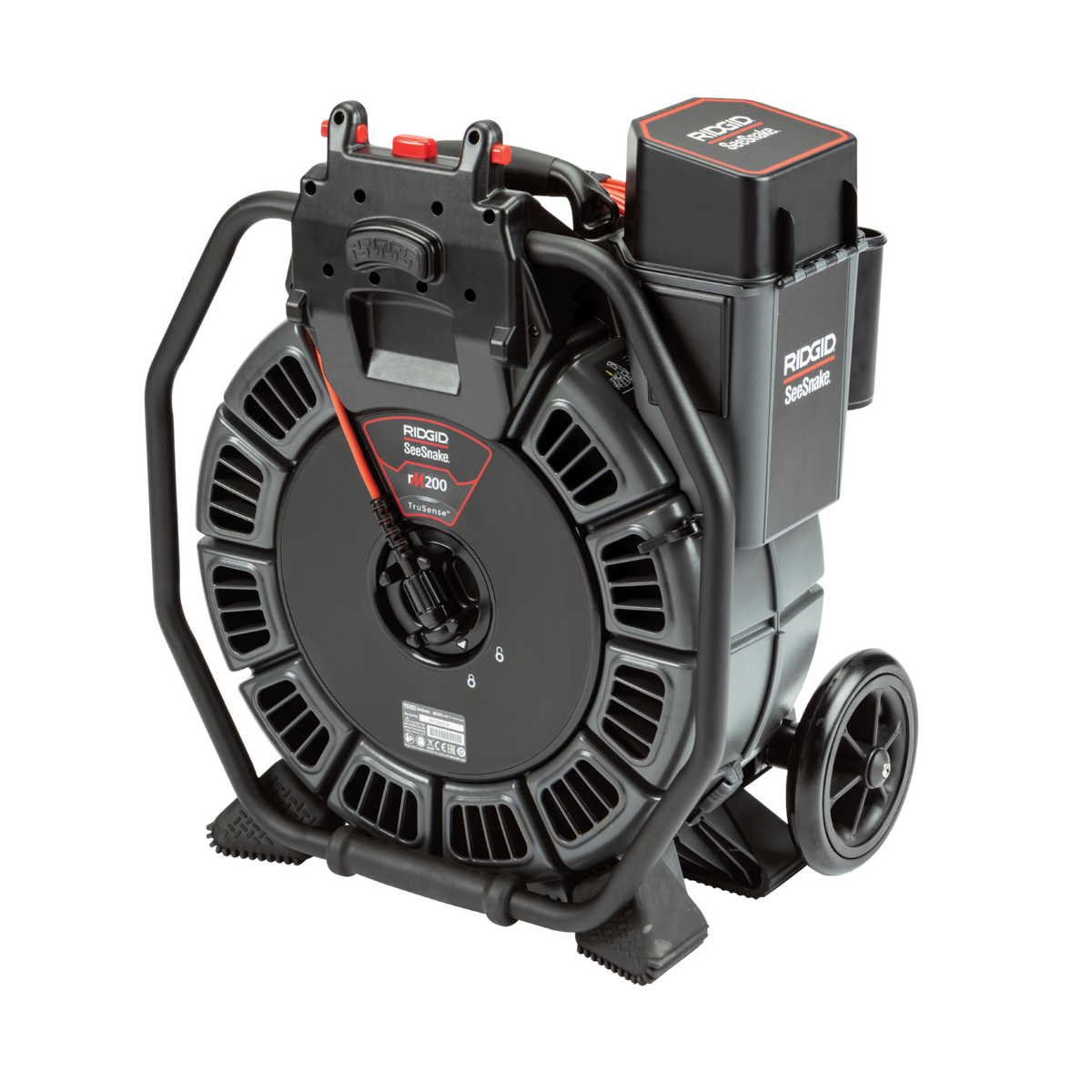

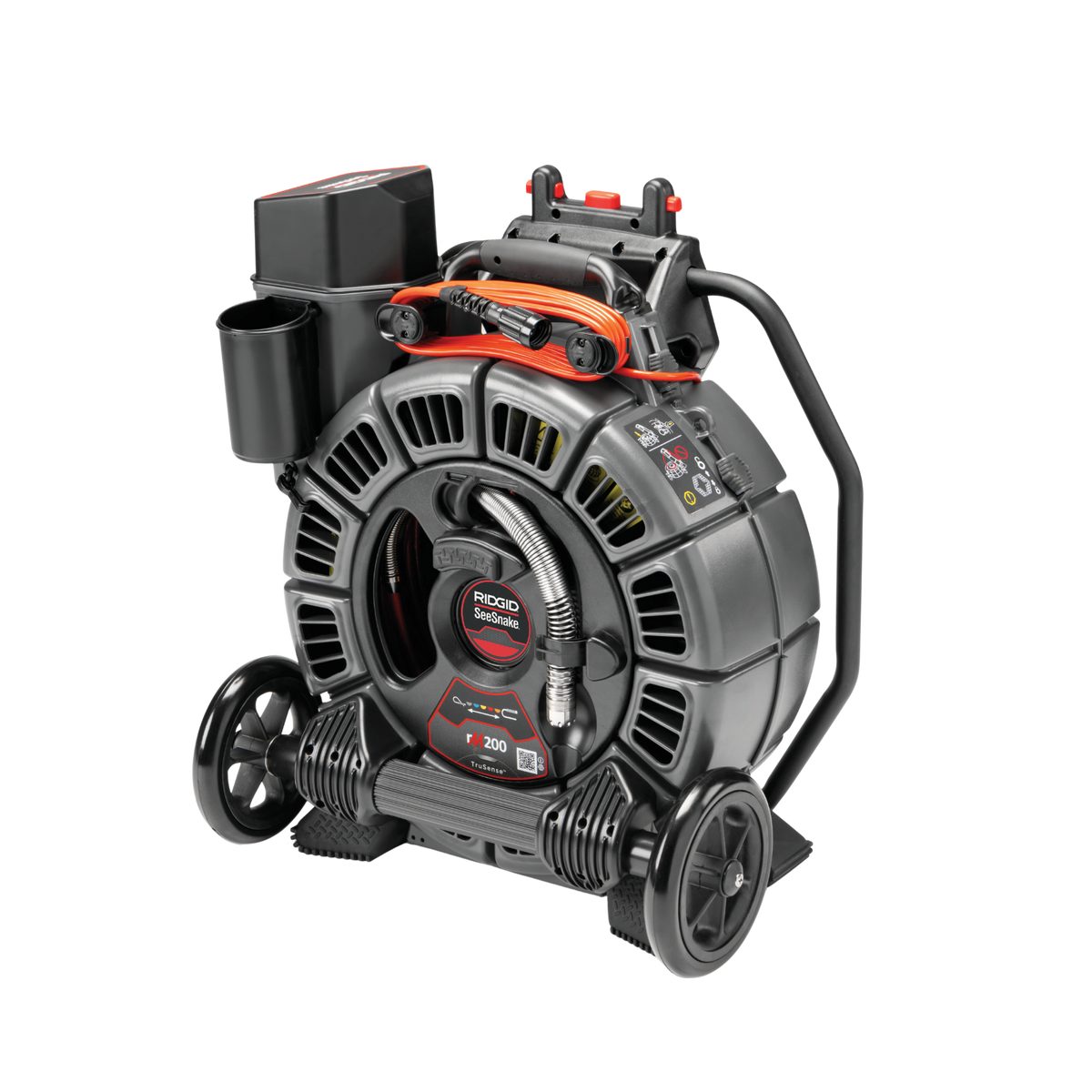

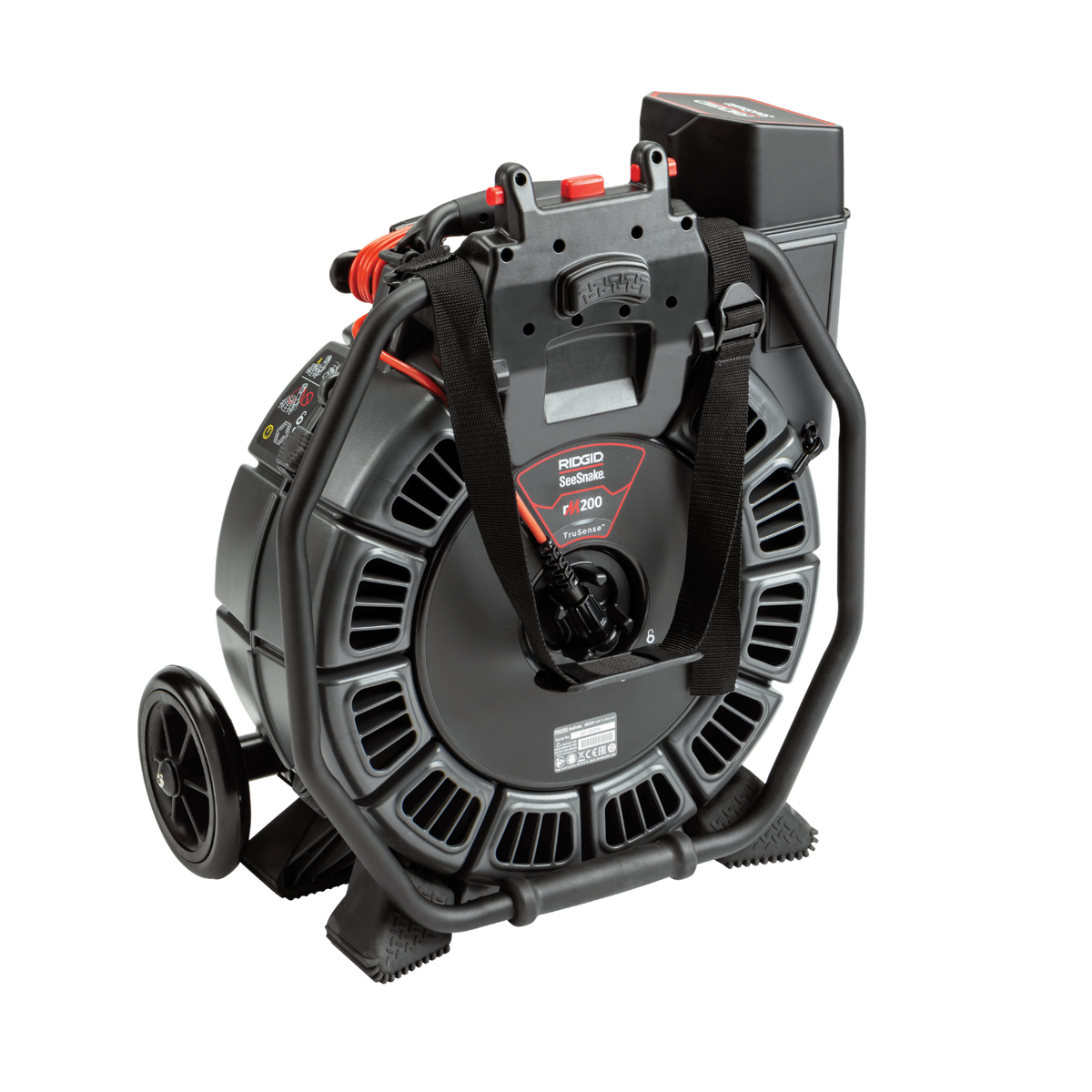

RIDGID 63658 SeeSnake rM200A Reel (200'/61 m) with Self-Leveling Camera Powered with TruSense

The SeeSnake® rM200A camera reel combines portability and versatility with its interchangeable D2 drum series, offering different combinations of push cable stiffness and spring flexibility to tackle any inspection job. Included TruSense® technology vastly improves down pipe visibility with its High Dynamic Range (HDR) image sensor and its TiltSense™ inclinometer. Ideal for tackling lines up to 200' (61 m) in length and 1-½" to 8" (38 mm to 203 mm) in diameter, the rM200A is easy to maneuver, offers increased storage, and features a convenient docking system to transport SeeSnake monitors.

Features:

  • Enhanced camera functionality - TruSense technology with High Dynamic Range (HDR) sensor and TiltSense inclinometer give crisp, always upright images and feedback on camera angle in-pipe.

  • Interchangeability - Easily interchangeable D2 drums for on-the-job flexibility and compatible with all SeeSnake monitors.

  • Pushability - Drums feature different push cable lengths, diameters, stiffness, and springs for customizable jobs.

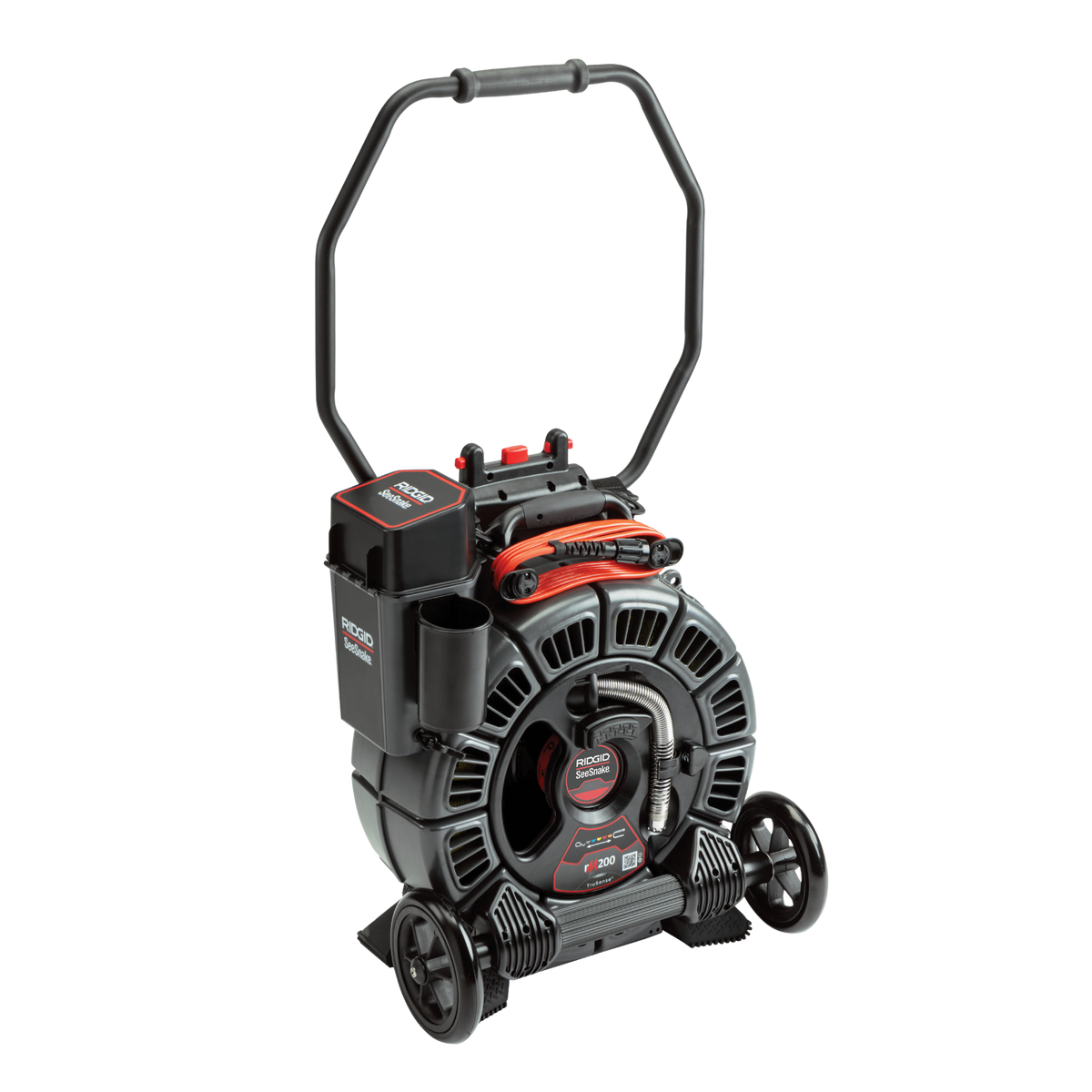

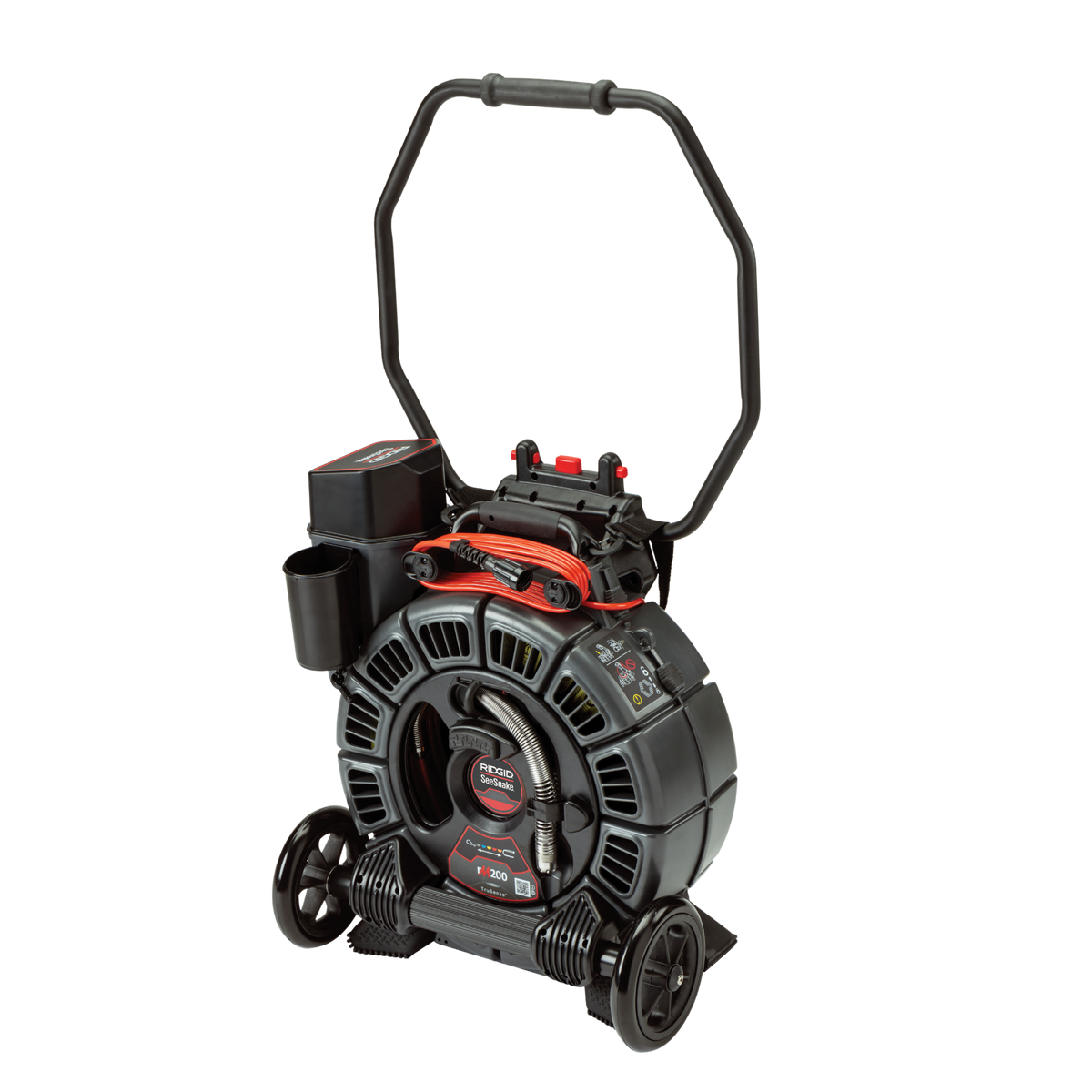

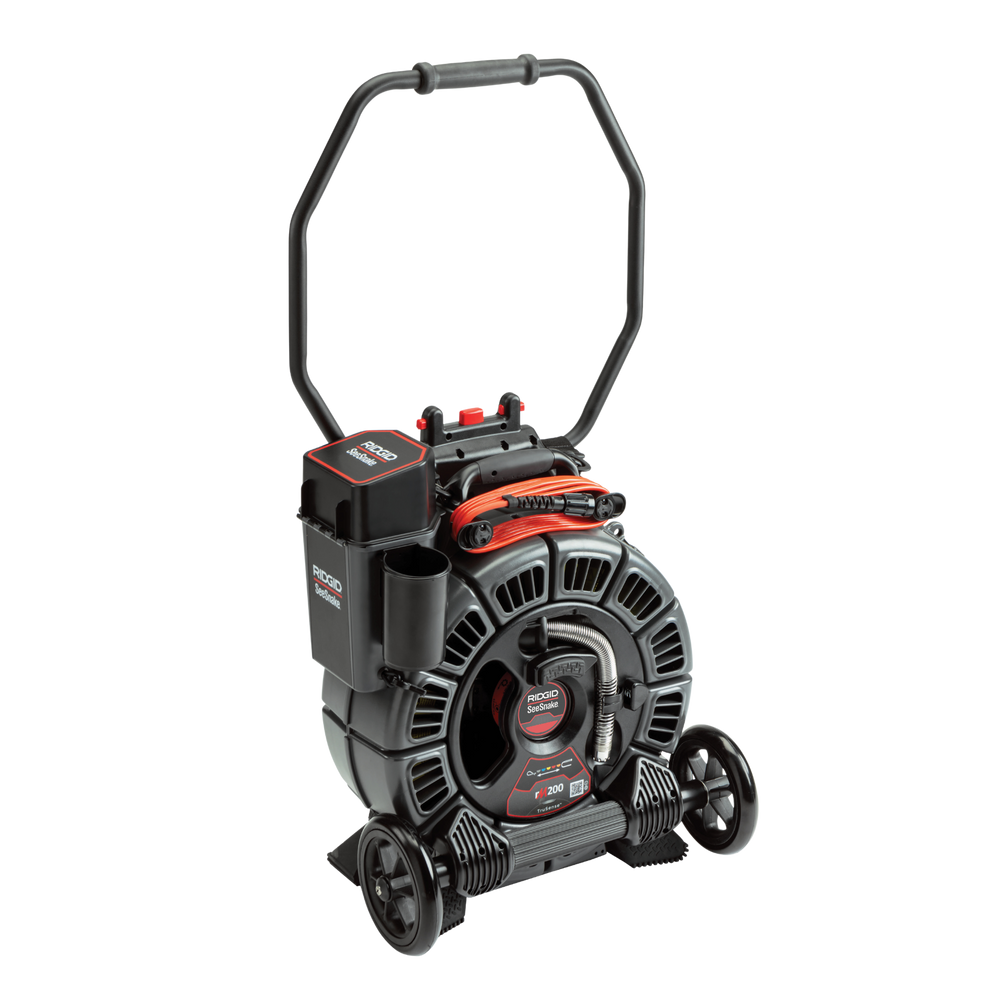

  • Portability - Multi-functional pull handle and smooth wheels for easy transport and positioning.

  • Increased storage - New taller stowbins with increased internal capacity to store jobsite essentials.

Specifications:

Length

535 mm (21.0 in)

Width

345 mm (13.6 in)

Height

610 mm (24 in)

Drum Diameter

432 mm (17 in)

Camera Diameter

25 mm (1 in)

Camera Type

Self-leveling with TruSense®

Camera Resolution

640 x 480

Spring Type

Single

Spring Length

316 mm (12.4 in)

Line Capacity

38 mm - 203 mm (1.5 in - 8 in)

Push Cable Length

61 m (200 ft)

Push Cable Diameter

7.5 mm (0.3 in)

Push Cable Minimum Bend Radius

70 mm (2.8 in)

Sonde

512 Hz, Flexmitter®

What's in the Box

Camera Reel; D2A Drum; Storage Case; CS6x Versa Hanger; 5 Pipe Guides; USB with HQ Software
