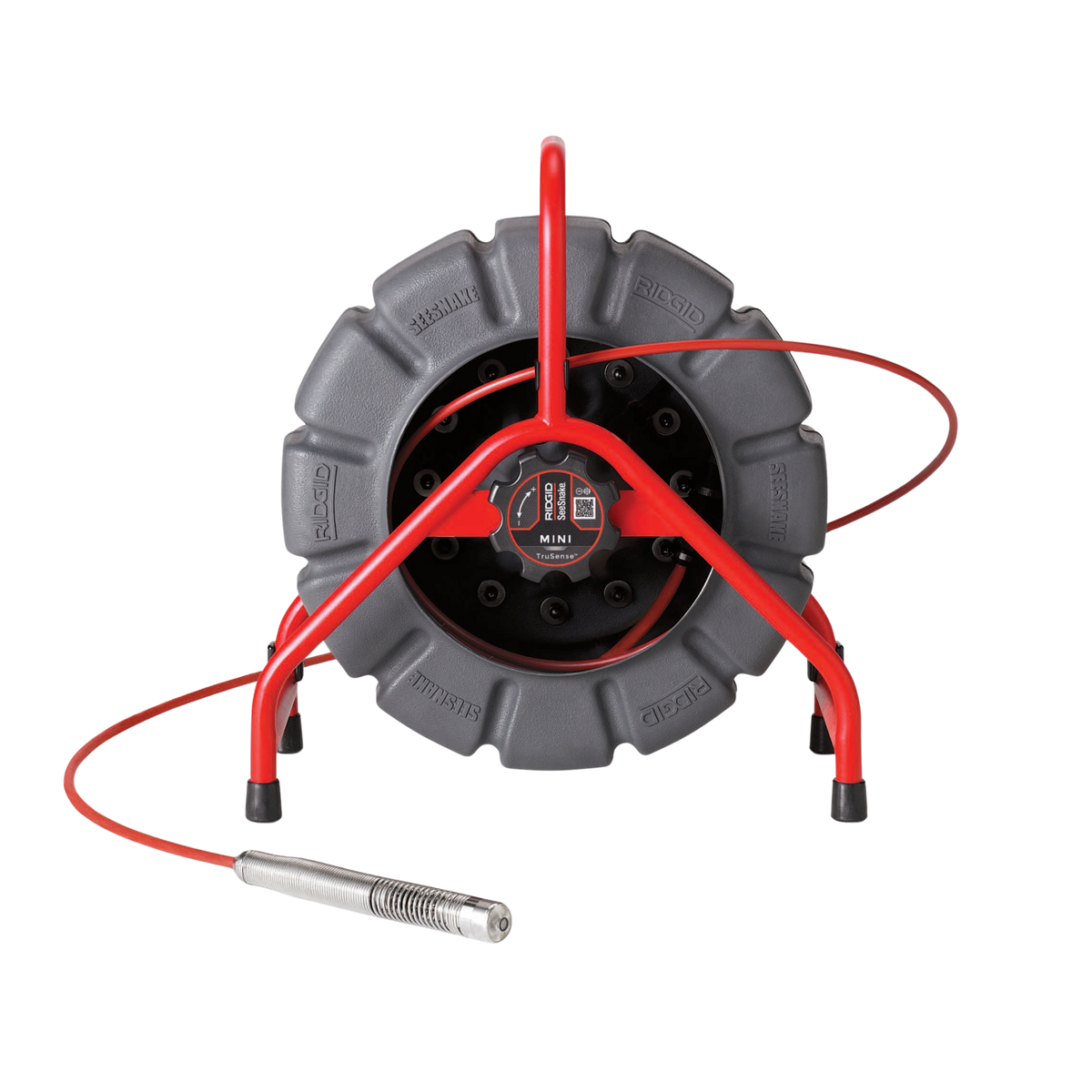

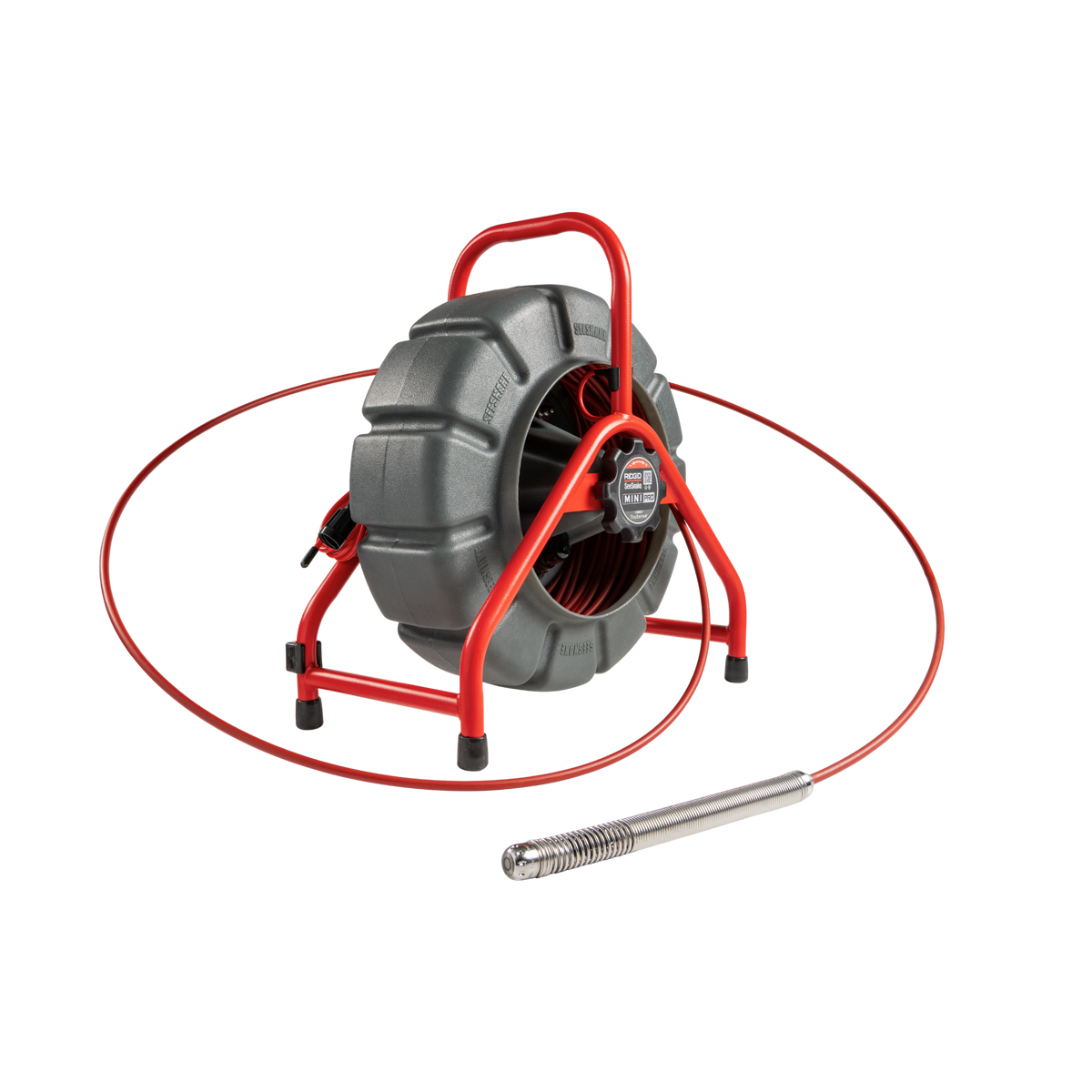

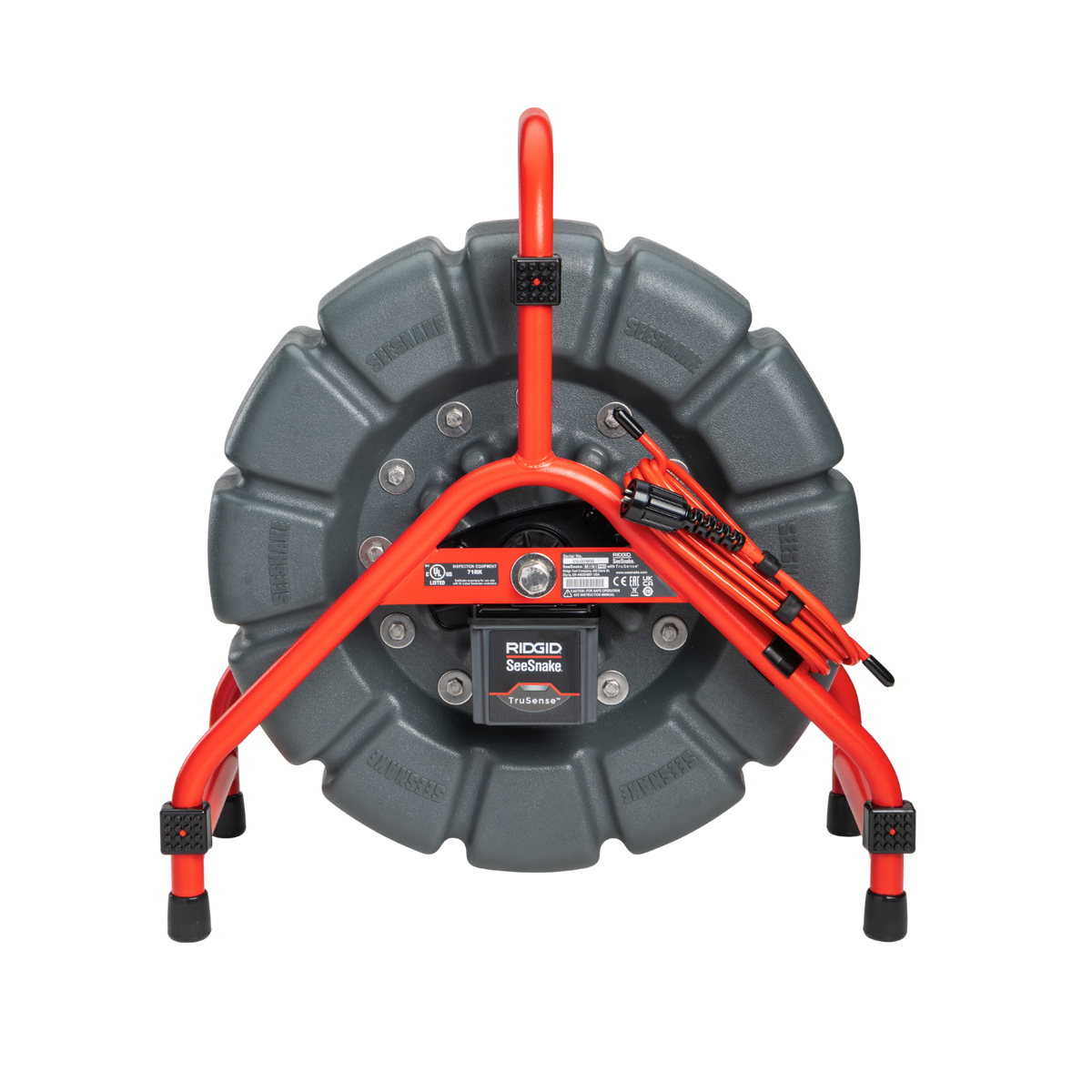

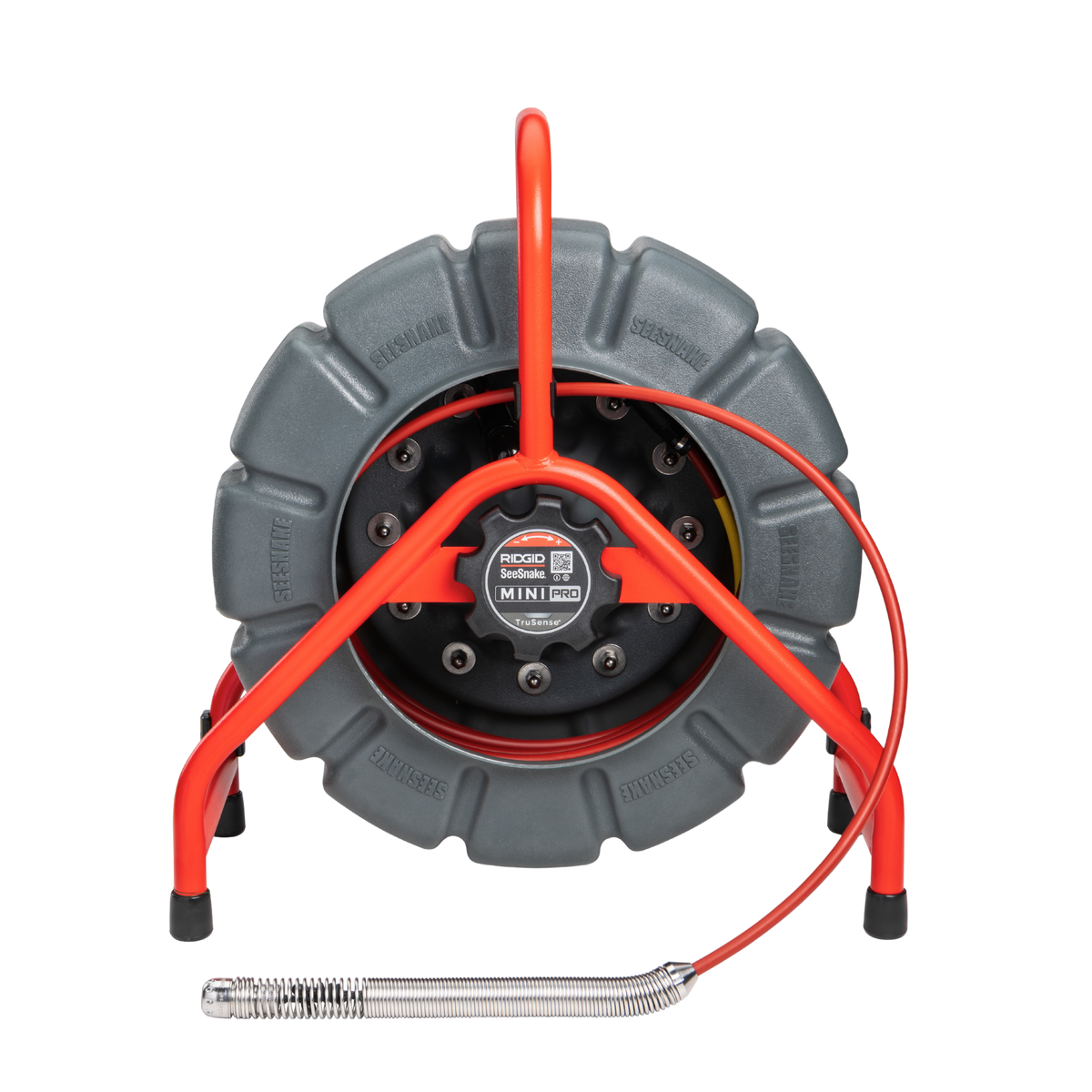

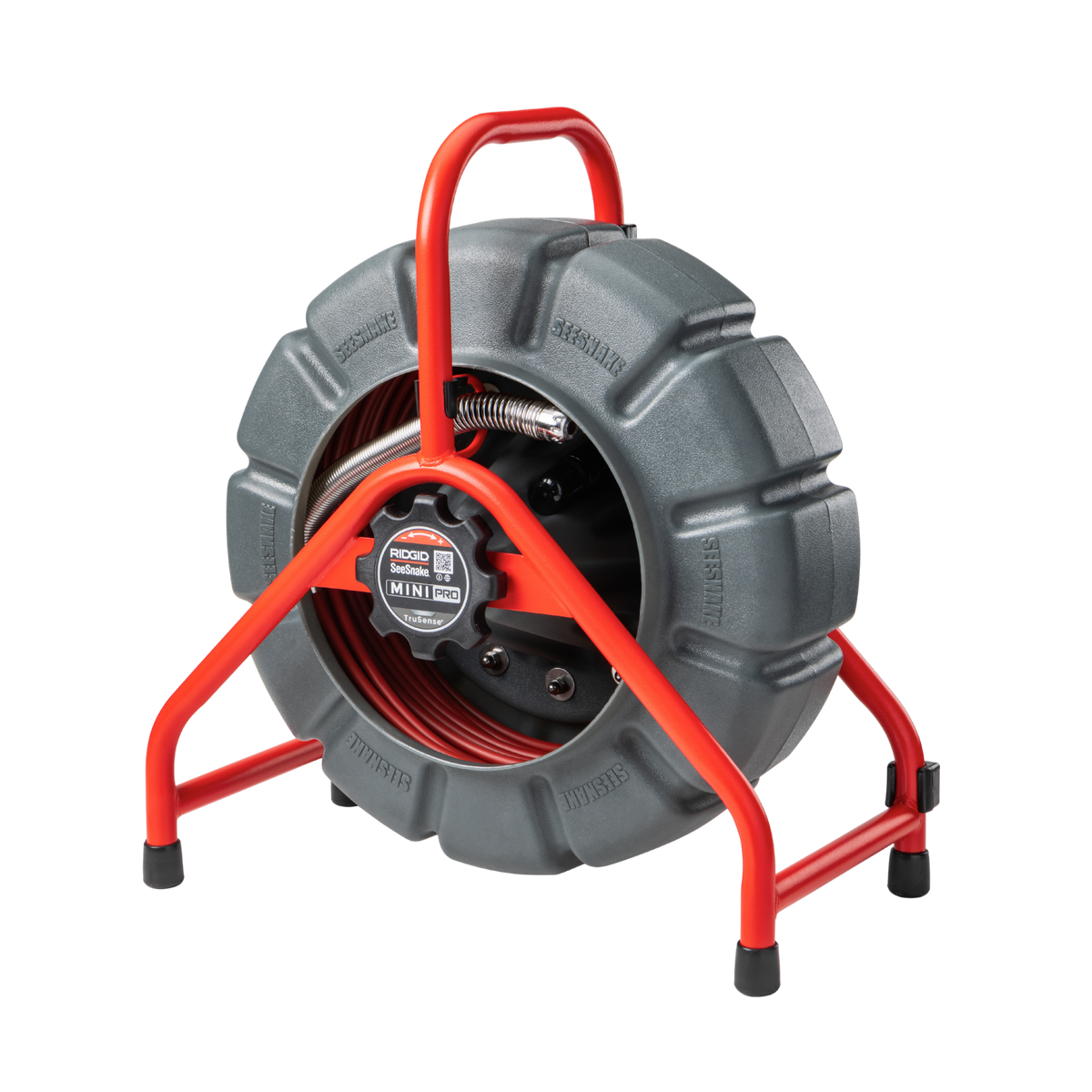

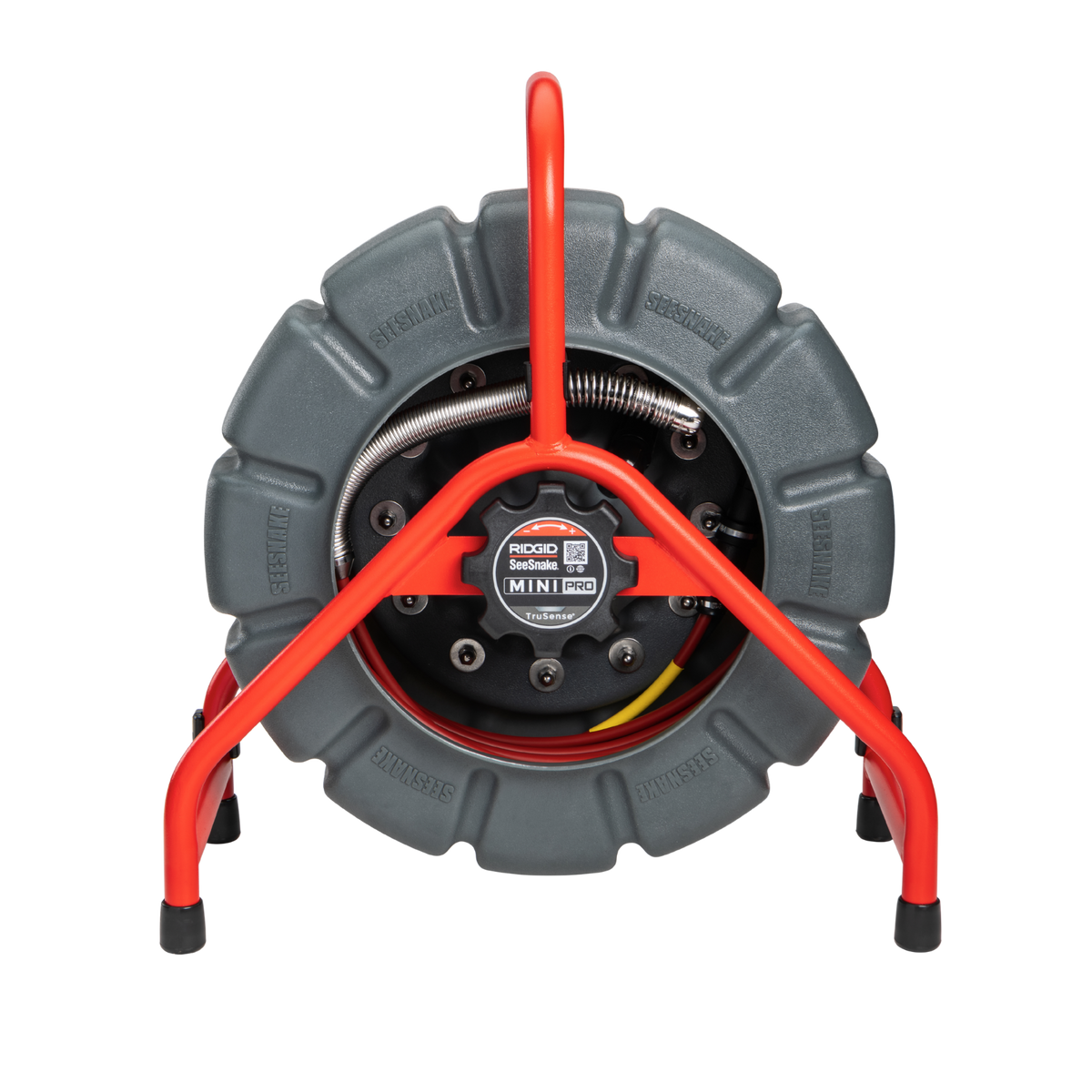

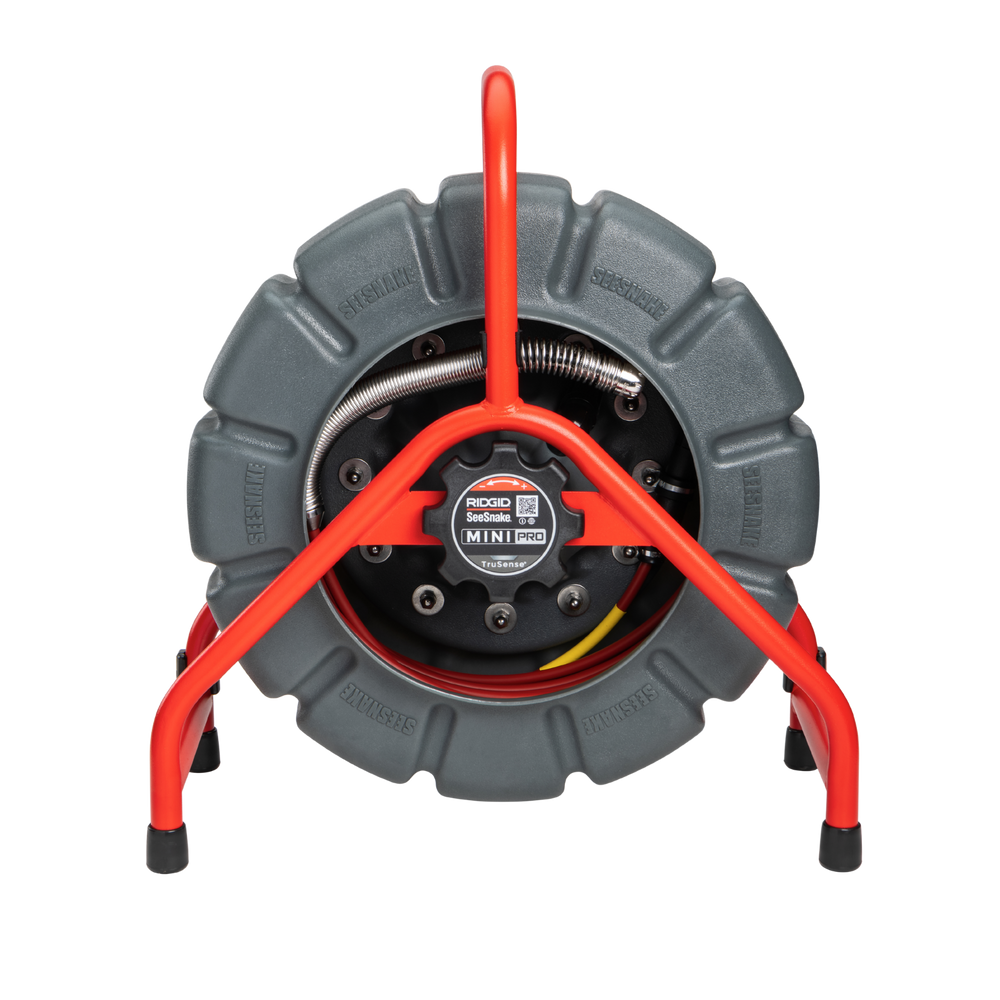

RIDGID 76883 SeeSnake Mini Pro Inspection Camera with TruSense Technology

The RIDGID® SeeSnake® Mini Pro is a TruSense-enabled diagnostic inspection reel equipped with industry-first digital self-leveling. Digital self-leveling extends the life of the camera head and minimizes service-related downtime by removing mechanical wear components. Removing these parts eliminates the friction that wears on the camera head over time while also achieving consistently upright, clear visuals that speed up every inspection. The Mini Pro is designed to navigate hard 90° bends and inspect up to 61 m (200') with a rugged 25 mm camera head and mid-flex push cable. When used with a TruSense-compatible monitor, the Mini Pro’s innovative self-leveling technology produces the most stable in-pipe view, without mechanical rotation. This greatly enhances the longevity and durability of the camera, while reducing the need to service a camera head. The TruSense enhanced camera brings valuable in-pipe data to improve pipe inspections in the field.

Features:

• TruSense Technology - When paired with a TruSense enabled monitor, advanced sensors on the camera head convey valuable information about the in-pipe environment including digital self-leveling, high dynamic range, a TiltSense Inclinometer, and digital pan/zoom.

• Digital Self-Leveling - Ultra-smooth digital self-leveling keeps image upright with no moving mechanical parts.

• High Dynamic Range - Offers superior clarity and detail of the in-pipe image displayed on a TruSense enabled monitor.

• TiltSense™ Inclinometer - Provides the degree of tilt of the camera head while in-pipe and displays it on a TruSense enabled monitor.

• Digital Pan & Zoom - Adds the ability to focus on a single point of interest.

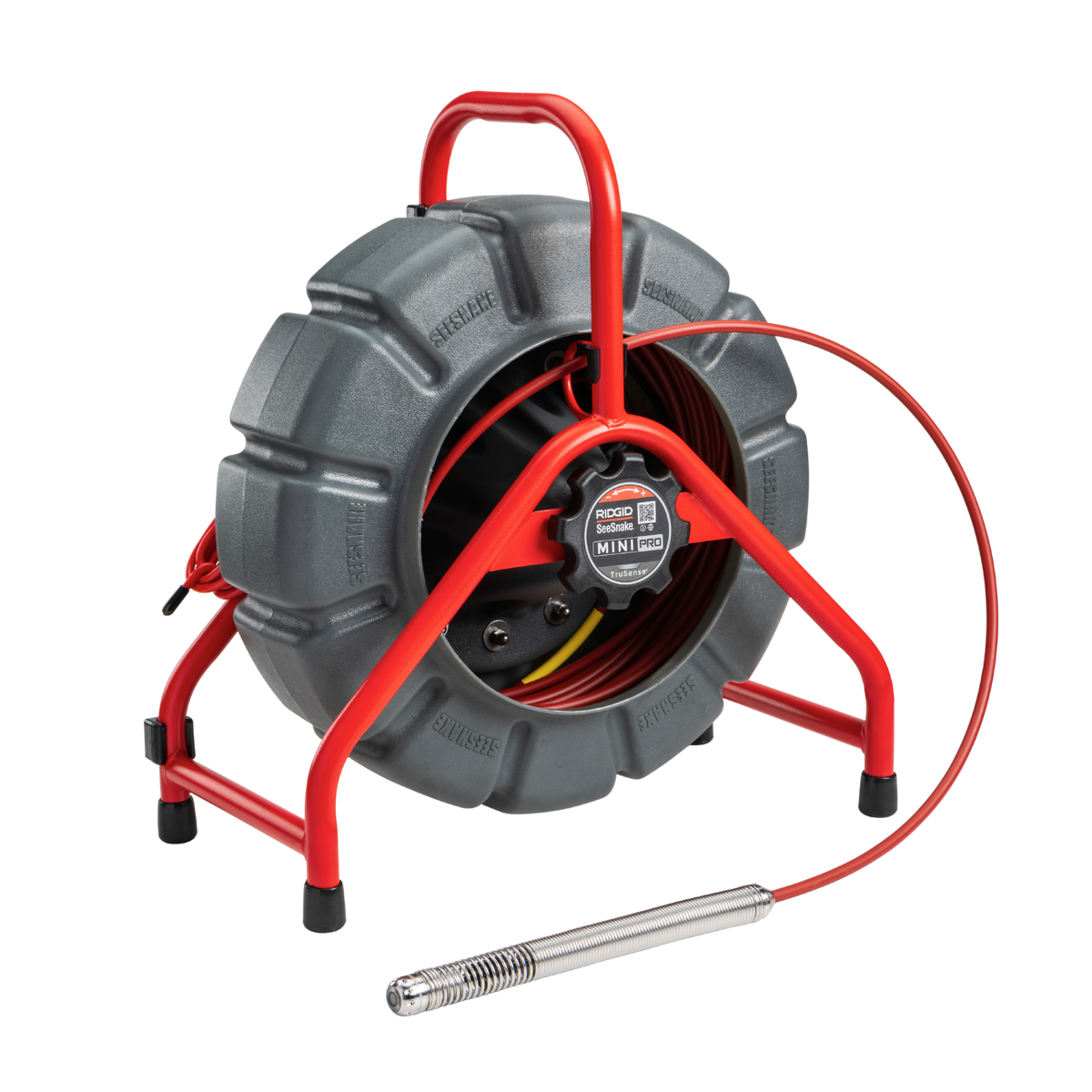

• Navigation Flexibility - Equipped with a rugged 25 mm diameter, 0.7 in (18 mm) long camera head and mid-flexibility push cable, this reel is flexible enough to navigate sharp bends while stiff enough to travel long distances in 1 1/2 - 8" (40 - 200 mm) lines.

• Traceability - A built-in 512Hz FleXmitter® sonde preserves the flexibility to clear tight runs.

Specifications:
