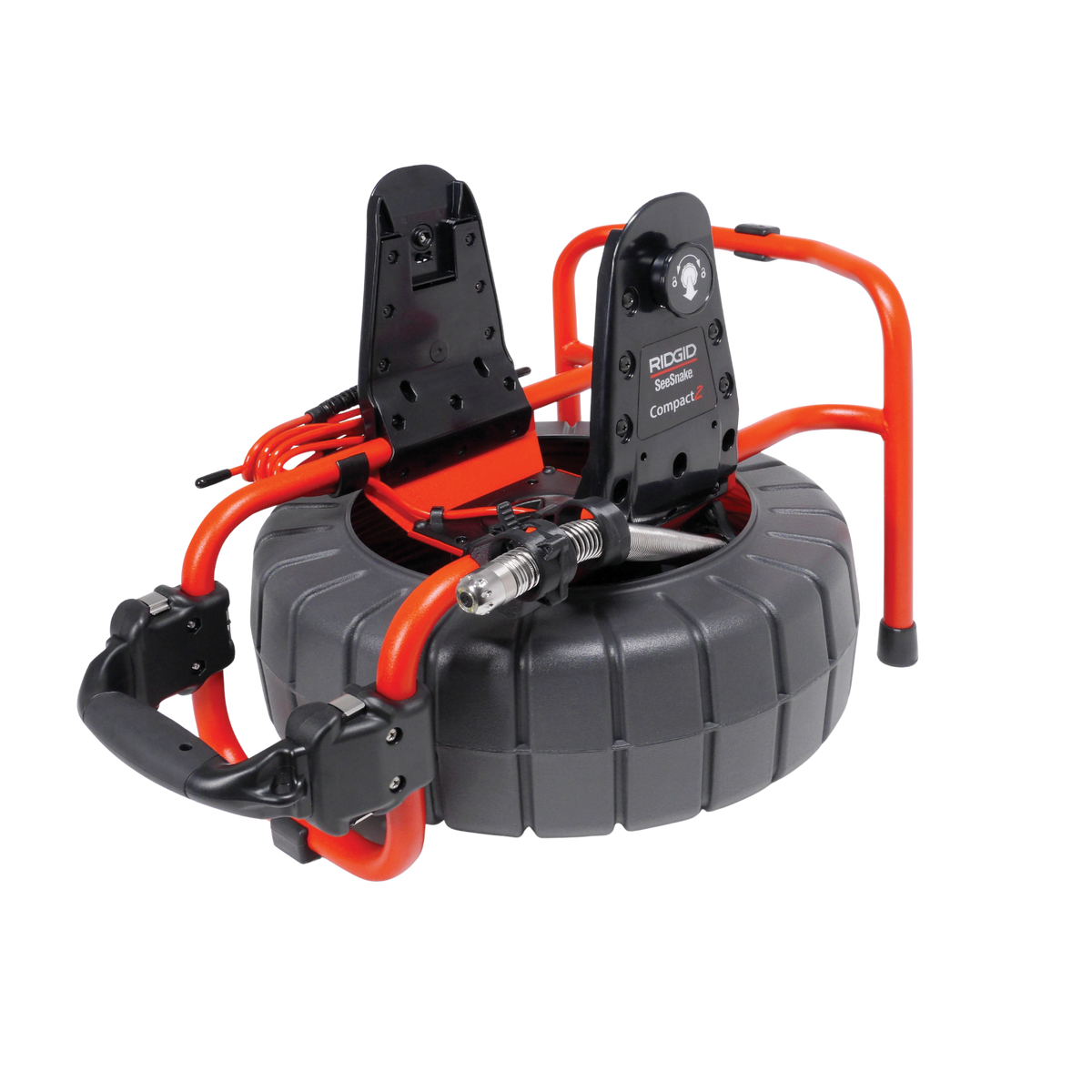

RIDGID 48093 SeeSnake Compact2 Camera System
RIDGID 48093 SeeSnake Compact2 Camera System
Big performance in a compact, durable package. Designed to inspect lines from 1.5" to 6" (40 mm to 150 mm), the Compact2 includes a 100' (30 m) push cable, 1" (25 mm) self-leveling camera head and sonde.
Features:
-
100' (30 m) long, friction-reducing 0.26" (6.7 mm) push cable and a 1" (25 mm) self-leveling camera designed to inspect pipes ranging from 1.5" to 6" (40 mm to 150 mm) in diameter, depending on pipe conditions.
-
The push cable is stiff enough to give you the power to push through small or restricted pipes, yet flexible enough to make multiple tight turns.
-
Powerful FleXmitter sonde has a long range and preserves the camera's ability to make turns.
-
Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable.
-
Quick-release docking system for fast, efficient job setup with the SeeSnake CS6x VERSA monitor.
-
Use with the SeeSnake CSx Via and HQx Dock for a convenient "bring-your-own-screen" streaming solution.
-
Download the free HQx Live app to view and record inspection jobs on your phone or tablet.
Specifications:
|
Line Capacity |
1.5" to 6" (40 mm to 150 mm) |
|
Push Cable Length |
100' (30 m) |
|
Push Cable Diameter |
0.27" (6.7 mm) with 3 mm [0.12 in] Fiberglass core |
|
Push Cable Bend Minimum Radius |
2.5" (63.5 mm) |
|
Weight (without batteries) |
16.6 lbs. (7.5 kg) |
|
Size |
Length 25" (63.5 cm), Width 14" (35.6 cm), Height 17" (43.2 cm) |
|
Camera Type |
1" (25 mm) Self-Leveling |
|
Resolution |
656 x 492 (NTSC), 768 X 576 (PAL) |
|
Light Source |
6 LEDs |
|
Sonde |
512 Hz |
|
Operating Temperature |
32°F to 104°F (0°C to 40°C) |
|
Storage Temperature |
14°F to 158°F (-10°C to 70°C) |
|
Ingress Protection without Monitor |
IPx5 |
-
