Sizing a commercial tankless water heater is fundamentally different from sizing a residential unit. The peak demand is higher, the fixture mix is more varied, the usage patterns are less predictable, and the consequences of undersizing are immediately felt across an entire building. A residential sizing mistake means one household runs out of hot water during a long shower. A commercial sizing mistake means a hotel full of guests, a restaurant kitchen, or a multi-family building experiences hot water failure during peak demand. This guide covers every step of the commercial sizing process — from calculating peak GPM through selecting the right unit or cascade configuration.
PlumbersCrib.com carries commercial-grade tankless water heaters from Intellihot, Rheem IKONIC Commercial, and American Water Heaters. Contact our team for help sizing your specific application.
The two variables that determine everything
Every tankless water heater sizing calculation — residential or commercial — comes down to two variables:
Peak flow rate (GPM) — how many gallons per minute of hot water the building demands at its busiest moment. This is the sum of all fixtures that could be running simultaneously at peak demand.
Temperature rise (°F) — the difference between the incoming cold water temperature and the desired hot water output temperature. A building in Minnesota with 42°F groundwater targeting 120°F output needs a 78°F temperature rise. A building in Florida with 70°F groundwater targeting the same output needs only a 50°F rise. The same unit delivers significantly more GPM in Florida than in Minnesota — and this difference drives the entire sizing decision in cold climates.
The formula that connects these two variables to the required unit capacity is:
Required BTU/h = Peak GPM × Temperature Rise (°F) × 500
Example: A building requiring 20 GPM at a 60°F temperature rise needs 20 × 60 × 500 = 600,000 BTU/h of tankless capacity. No single residential unit can meet this — a cascade of commercial units is required.
Step 1 — Calculate peak GPM
Start by listing every hot water fixture in the building and its flow rate. Use the fixture's actual flow rate — not the supply line size — and confirm against the manufacturer's spec or the fixture's aerator rating where available. Standard reference flow rates for common commercial fixtures:
| Fixture | Typical flow rate |
|---|---|
| Shower | 2.0 – 2.5 GPM |
| Bathroom lavatory faucet | 0.5 – 1.5 GPM |
| Kitchen sink | 1.5 – 2.0 GPM |
| Dishwasher | 1.0 – 1.5 GPM |
| Washing machine | 2.0 GPM |
| Commercial pre-rinse spray valve | 1.28 – 1.6 GPM |
| Mop sink / utility sink | 2.0 – 3.0 GPM |
| Tub fill | 3.0 – 4.0 GPM |
Do not simply add up every fixture in the building — no commercial building runs every fixture simultaneously. Instead identify the realistic peak demand scenario for the specific application type. For a hotel, peak demand is typically the morning rush when the maximum number of guests shower simultaneously. For a restaurant, it is the dinner service period when the kitchen, dishwasher, and prep sinks are all running at once. For a multi-family building, it is the early morning window when the most units are occupied and residents are preparing for work.
Step 2 — Apply the diversity factor
The diversity factor accounts for the reality that not all fixtures run at full flow simultaneously even during peak demand. In residential applications, diversity factors of 60–70% are common. In commercial applications, diversity factors are higher — typically 85–100% — because usage patterns are less coordinated and peak demand in high-occupancy buildings is more concentrated.
For conservative commercial sizing, use 100% diversity — assume all fixtures in the peak demand scenario run simultaneously at full flow. This approach is standard for hotels, gyms, and high-occupancy multi-family buildings where missing peak demand has the most severe consequences. For lower-risk applications like office buildings or small restaurants, an 85% diversity factor is often appropriate. Confirm with the ASPE Plumbing Engineering Design Handbook for application-specific diversity factors when precision matters.
Step 3 — Determine temperature rise
Incoming groundwater temperature varies significantly by region and season. Use the coldest seasonal groundwater temperature for the installation location — not the annual average. A unit sized for a 60°F summer temperature rise will underperform in winter if the groundwater drops to 42°F and the required rise becomes 78°F. Sizing for the worst-case winter condition ensures the system performs year-round.
| Climate zone | Approximate winter inlet temperature | Temperature rise to 120°F |
|---|---|---|
| Zone 1 — Northern states (MN, WI, MI, New England) | 42°F | 78°F rise |
| Zone 2 — Midwest and mid-Atlantic | 52°F | 68°F rise |
| Zone 3 — Mid-South and mountain states | 62°F | 58°F rise |
| Zone 4 — Southern states and Southwest | 72°F | 48°F rise |
Step 4 — Select the unit or cascade configuration
Once you have peak GPM and temperature rise, compare against manufacturer flow-vs-rise charts for each unit under consideration. These charts show actual deliverable GPM at a given temperature rise — not the maximum rated GPM, which is typically measured at a lower temperature rise than your installation will require.
Most commercial applications that exceed the capacity of a single residential unit require either a dedicated commercial unit or a cascade of multiple units. The two approaches differ significantly:
Commercial dedicated units — purpose-built commercial tankless units deliver significantly higher output from a single unit and are designed for the redundancy, monitoring, and serviceability requirements of commercial installations.
Cascade configurations — multiple units connected in a cascade system that shares load and provides redundancy. Redundancy is a critical specification for commercial installations: if one unit in the cascade goes offline for service, the remaining units continue to deliver hot water. See our condensing vs. non-condensing guide for a full breakdown of unit types before speccing a cascade.

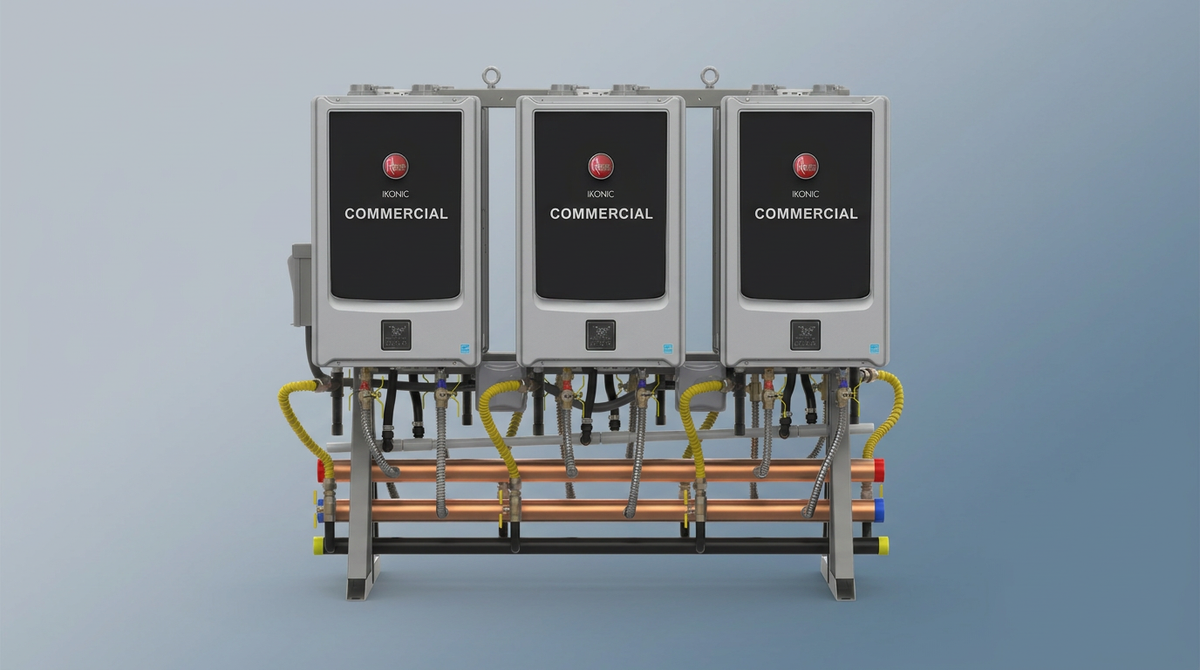

Rheem IKONIC Commercial — rack system configurations
The Rheem IKONIC Commercial is purpose-built for commercial applications — 199,900 BTU per unit, up to 98% thermal efficiency, dual heat exchanger with down-firing pre-mix burner, and a maximum temperature setting of 185°F. That 185°F capability is significant for restaurant and food service applications where high-temperature dishwasher sanitizing is required — no upgrade kit needed. The system supports connection of up to 32 units and comes in three rack configurations:
| Rack system | Units per system | Maximum BTU/h | Best for |
|---|---|---|---|
| Free Standing Rack | 2 – 6 units | 1,199,400 BTU/h | Large floor-mounted installations, hotels, multi-family |
| Wall Hung Rack | 2 – 3 units | 599,700 BTU/h | Space-constrained mechanical rooms, offices, restaurants |
| Modular Rack | Any number | Scales to project | Custom configurations, side-by-side or back-to-back |
All rack systems include pre-assembled factory-programmed manifolds for plug-and-play installation with single-point water and gas connections. Common venting allows up to 170 feet of run for 8 units using 6" pipe, with up to 12-unit common venting at 75 feet. Built-in EcoNet Wi-Fi enables remote monitoring, scheduling, leak alerts via LeakGuard auto shut-off, and recirculation control from a mobile device. Field convertible from natural gas to LP with included conversion kit. Suitable for indoor or outdoor use with available outdoor conversion kit. Warranty is 8-year heat exchanger, 5-year parts, 1-year labor.
Intellihot Neuron Series — masterless cascade
The Intellihot iN401 delivers 399,000 BTU/h at 96% efficiency with 17.1 GPM at a 45°F rise from a single unit. Up to four units can be cascaded for a combined output of 1.6 million BTU/h. Intellihot's patented masterless cascading means if one unit goes offline for service, all other units automatically regroup and continue operating — eliminating the single-point failure risk of traditional master/slave cascade systems. For applications where hot water continuity is non-negotiable, masterless cascading is the right specification.
American Water Heaters Adapt SC X3 — hard water cascade
The American Water Heaters Adapt SC X3 supports cascading up to 12 units with common venting — a strong commercial option particularly on hard water jobs where built-in X3 Scale Prevention Technology eliminates descaling across the entire cascade and removes scale-related warranty exclusions.
Sizing examples by application type
20-unit multi-family building — Zone 2 (52°F inlet)
Peak demand scenario: 10 units showering simultaneously (morning rush, 50% occupancy peak). 10 showers × 2.0 GPM = 20 GPM peak demand. Temperature rise: 120°F − 52°F = 68°F. Required capacity: 20 × 68 × 500 = 680,000 BTU/h. Solution: Two Intellihot iN401 units in masterless cascade (798,000 BTU/h combined) with headroom for demand spikes. Alternatively two Rheem IKONIC Commercial units in a Free Standing Rack System (399,800 BTU/h combined) if the demand calculation confirms sufficient headroom.
High-volume restaurant — Zone 3 (62°F inlet)
Peak demand scenario: Three-compartment sink (3 GPM), dishwasher (1.5 GPM), two pre-rinse spray valves (1.6 GPM each), prep sink (2 GPM) = 9.7 GPM peak demand. Temperature rise: 140°F dish sanitizing target − 62°F inlet = 78°F rise. Required capacity: 9.7 × 78 × 500 = 378,150 BTU/h. Solution: Single Intellihot iN401 (399,000 BTU/h) or a two-unit Rheem IKONIC Commercial Wall Hung Rack System (399,800 BTU/h). Note: the Rheem IKONIC Commercial reaches 185°F — meeting high-temperature dish sanitizing requirements without an upgrade kit.
Office building with gym — Zone 4 (72°F inlet)
Peak demand scenario: 8 gym showers simultaneously plus 4 restroom sinks = 8 × 2.0 + 4 × 1.0 = 20 GPM at 85% diversity = 17 GPM adjusted. Temperature rise: 120°F − 72°F = 48°F rise. Required capacity: 17 × 48 × 500 = 408,000 BTU/h. Solution: Single Intellihot iN401 at 399,000 BTU/h is close — step up to a two-unit Rheem IKONIC Commercial Wall Hung Rack (399,800 BTU/h) or Intellihot two-unit cascade for reliable headroom.
Infrastructure checklist before finalizing the spec
Before locking in the unit selection, confirm the building infrastructure can support the commercial tankless specification:
- Gas supply capacity — commercial units require significantly more gas flow than residential units. Confirm the existing gas main and meter can support the total BTU/h input of the specified units. Undersized gas supply is the most common cause of underperformance on commercial tankless installations
- Gas inlet pressure — confirm inlet pressure is within the manufacturer's specified range. A gas pressure regulator is required if incoming pressure exceeds 14" W.C. on Intellihot units. See our venting guide for full gas line sizing guidance
- Venting — commercial units require venting sized for their higher BTU/h input. Both Rheem IKONIC Commercial and Intellihot support common venting for cascaded installations — plan the common vent run during rough-in before the cascade is finalized
- Electrical — even gas tankless units require a dedicated electrical circuit for the control board. Confirm the electrical requirement for your specific unit
- Water hammer protection — Intellihot requires a water hammer arrestor installed within 20 feet of the unit on the hot water supply
- Recirculation — Intellihot commercial units require constant external recirculation with a minimum 2.4 GPM flow rate. Plan the recirculation loop and pump during rough-in. Rheem IKONIC Commercial offers built-in recirculation options controllable via EcoNet
- Minimum flow and activation rates — Rheem IKONIC Commercial requires a minimum flow rate of 0.26 GPM and minimum activation rate of 0.40 GPM. Confirm these are achievable at the installation location
Commercial applications by unit type
| Application | Recommended unit | Key reason |
|---|---|---|
| Hotels and multi-family — large | Rheem IKONIC Commercial Free Standing Rack — up to 32 units | Highest scalability, EcoNet remote monitoring, redundancy |
| Restaurants and food service | Rheem IKONIC Commercial or Intellihot iN401 | Rheem reaches 185°F for dish sanitizing without upgrade kit |
| Multi-family — medium | Intellihot iN401 cascade or Rheem IKONIC Commercial | Masterless cascade ensures zero downtime during service |
| Hard water commercial jobs | American Water Heaters Adapt SC X3 cascade | Built-in X3 scale prevention, no descaling, no scale warranty exclusions |
| Schools and distributed installations | Rheem IKONIC Commercial | Units can be distributed throughout campus closer to point of use |
| Senior care facilities | Rheem IKONIC Commercial | Precise temperature control via EcoNet for added safety |
Frequently asked questions
What is the difference between residential and commercial tankless sizing?
The math is the same — peak GPM × temperature rise × 500 = required BTU/h. The difference is scale, diversity factor, and consequences. Commercial applications typically require higher BTU/h than any single residential unit can deliver, requiring cascade configurations or dedicated commercial units. Commercial applications also use higher diversity factors — 85–100% versus 60–70% for residential.
What is masterless cascading and why does it matter?
In a masterless cascade, every unit in the system operates independently and shares load without a dedicated master controller. If one unit goes offline for service, the remaining units automatically regroup and continue delivering hot water. In a traditional master/slave cascade, a master controller failure takes down the entire system — an unacceptable outcome in a hotel, hospital, or multi-family building. Masterless cascading is a standard feature on Intellihot commercial units.
Should I size for average demand or peak demand?
Always size for peak demand — the worst-case simultaneous hot water draw the building will experience. A tankless unit sized for average demand will fail to deliver adequate hot water during peak periods, resulting in temperature drops, complaints, and callbacks.
Can I use residential tankless units in a commercial application?
In some light commercial applications — small offices, retail spaces, restaurants with modest hot water demand — high-output residential condensing units can be cascaded to meet demand. For larger commercial applications — hotels, hospitals, large restaurants, high-rise multi-family — purpose-built commercial units like the Rheem IKONIC Commercial or Intellihot are the appropriate specification.
Where can I find a commercial tankless sizing calculator?
Intellihot offers a dedicated commercial sizing calculator at intellihot.com/sizing-calculator. Rheem offers application consulting and project sizing support through their commercial team. Our team can also walk through the sizing calculation with you directly — contact us or call 877-881-5501 Monday through Friday.
