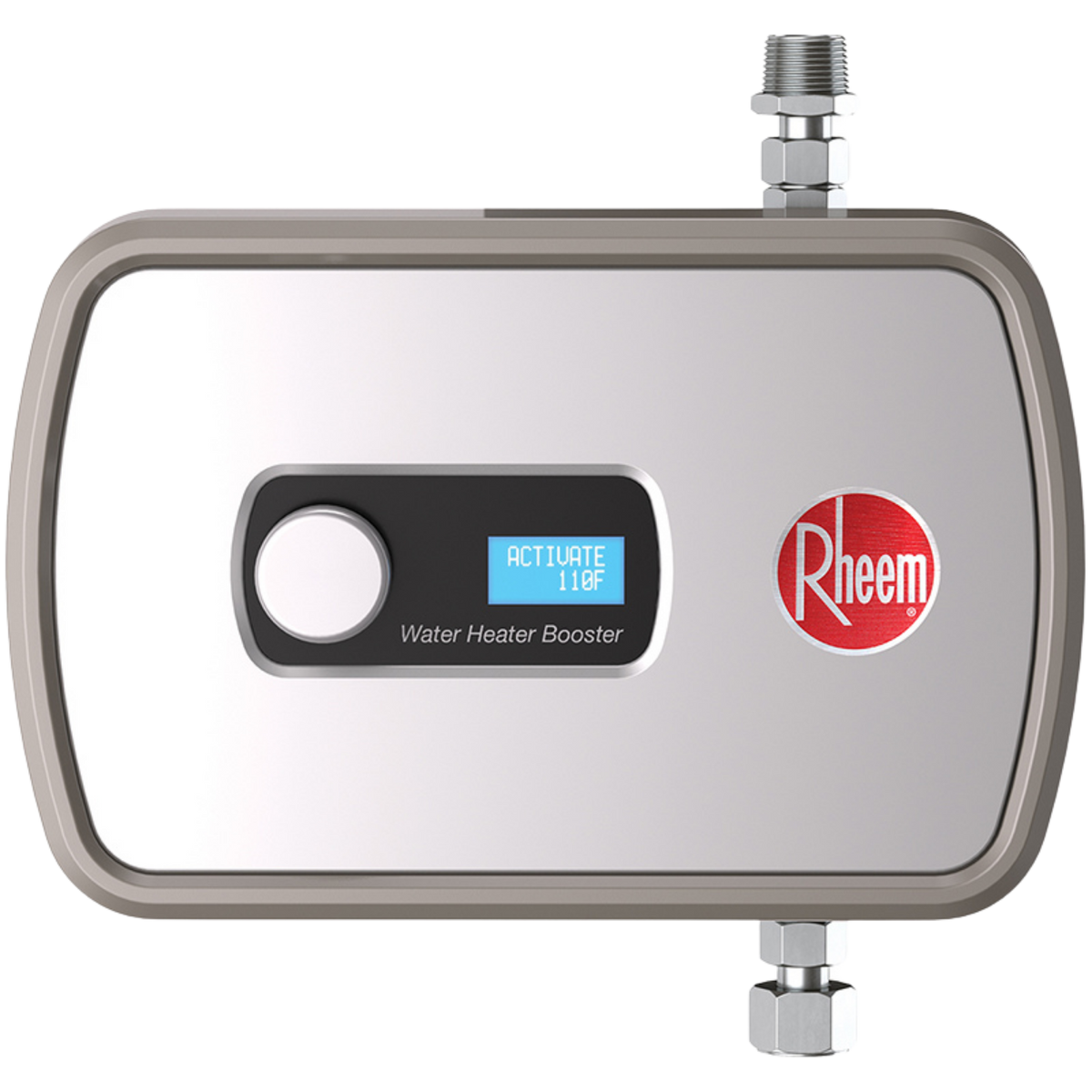

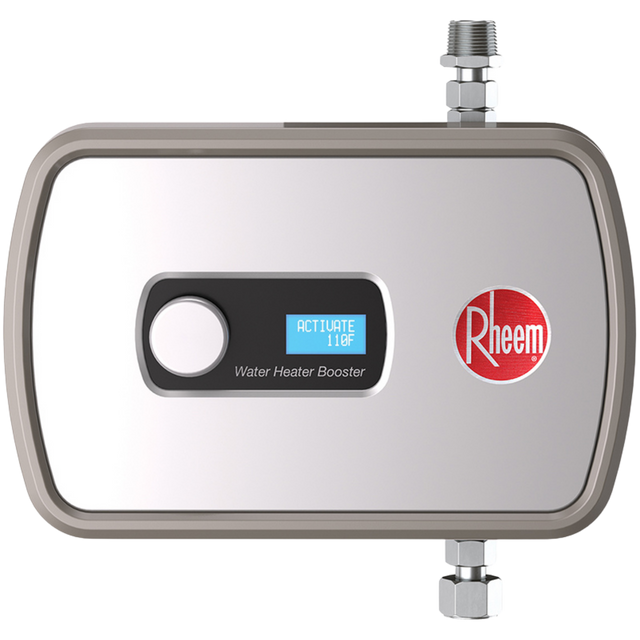

Rheem RTEX-AB7 Water Heater Booster - 7.2 kW 240V

The Rheem Water Heater Booster installs directly on a tank's hot water line to provide more hot water than the tank alone can provide. The booster delivers nearly double the shower time. The unit senses the temperature of the water from the tank outlet, and activates when it senses that its inlet temperature has dropped below the user set activation temperature. Compatible with both electric and gas tank water heaters.

Features:

• Increase deliverable hot water up to 45%.

• Compact design – Dimensions: 8-1/4" H x 12-5/8" W x 3-5/8" D.

• Digital user interface with adjustable temperature controls.

• Adjustable activation temperature 80-130°F.

• Adjustable outlet temperature 80-140°F.

• Set temperature in increments of 1°F.

• Easy installation on new or existing water heater.

• No need for additional electrical infrastructure if installed on existing electric water heater. Additional wiring may be required for a gas tank installation.

• Field replaceable element.

• Unit may be wall mounted if available space is limited.

• Brass ¾" NPT fittings – Inlet (Female), Outlet (Male).

• Includes ½" CF connection fitting adapters for ¾" copper tube.

Specifications:
